ZH- Chain links for line fittings
1) Certificate :ISO 9001 IEC 60120
2) Easy to Install
3) Hot dip galvanized
Cable fitting- ZH-Chain links for cable fittings
1) our company can produce as your drawings or sample.
2) .Packing: strandard export packing
3).Hope to establish relationship with you,If you have any questions contact me .Thank you
4)Material: Hot-dip galvanized steel
It's used to link clamps to insulator,or to link insulator and ground wire clamp to
towerarms or substation structures.
we are the manufcturer with ten years experience.
It is used to link clamps to insulator, or to link insulator and ground wire clamp to tower or sujection stucture. It has special type inaccordance with mounting condition.
There will no sharp edges, and corners rounded. All items will be clean rust free, smooth and uniform throughout and will also be free from burrs

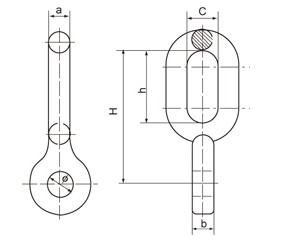

Type | Dimensions(mm) | Ultimate Strength (kN) | |||||
C | b | a | Φ | H | h | ||
ZH-7 | 24 | 16 | 16 | 20 | 100 | 57 | 70 |
ZH-10 | 24 | 16 | 18 | 20 | 100 | 55 | 100 |
ZH-12 | 24 | 16 | 20 | 24 | 103 | 65 | 120 |
ZH-16 | 26 | 16 | 22 | 26 | 135 | 75 | 160 |
